Rotary Lever Hand Valve Air Flow Control 0~1.0mpa 0‑145Psi 2 Position 4 Way Pneumatic Switch4HV210-06
Key Words:
Rotary,Lever,Hand,Valve§Rotary,Lever,Hand,Control,Valve§Pneumatic,Rotary,Valve§Pneumatic,Rotary,Hand,Valve§Pneumatic,Switch§Pneumatic,Equipment
Note:
Keep the pipeline clean and prolong the service life.
Package List:
1 x Rotary Lever Hand Valve1 x Handle(Color Random)
Features:
1ã€LIGHT REVERSING ROTATION: Rotary lever hand valve possess light reversing rotation, good hand feeling, and accurate positioning 2ã€LARGE EFFECTIVE CIRCULATION AREA: Come with large effective circulation area and small pressure loss, very reliable and practical 3ã€HIGH MATCHING DEGREE: High accuracy valve stem has high matching degree and good air tightness, you can use with confidence 4ã€LOW FRICTION RESISTANCE: The inner hole is treated with a special process, with low friction resistance and long service life, more durable 5ã€ALUMINUM ALLOY MATERIAL: Rotary lever hand valve using aluminum alloy material, come with stable performance and durable
Specification:
Item Type: Rotary Lever Hand ValveMaterial: Aluminum alloyModel4HV210-064HV210-08Way of workingAirConnecting pipe caliberG1/8G1/4Effective cross sectional area14mm²(Cv=0.78)16mm²(Cv=0.89)Number of digits2 Position 4 wayLubricatingNo lubrication requiredOperating pressure range0-1.0MPa (0-145psi)Ensure pressure resistance1.5MPa (215psi)Operating temperature-20~70℃Working angle90°

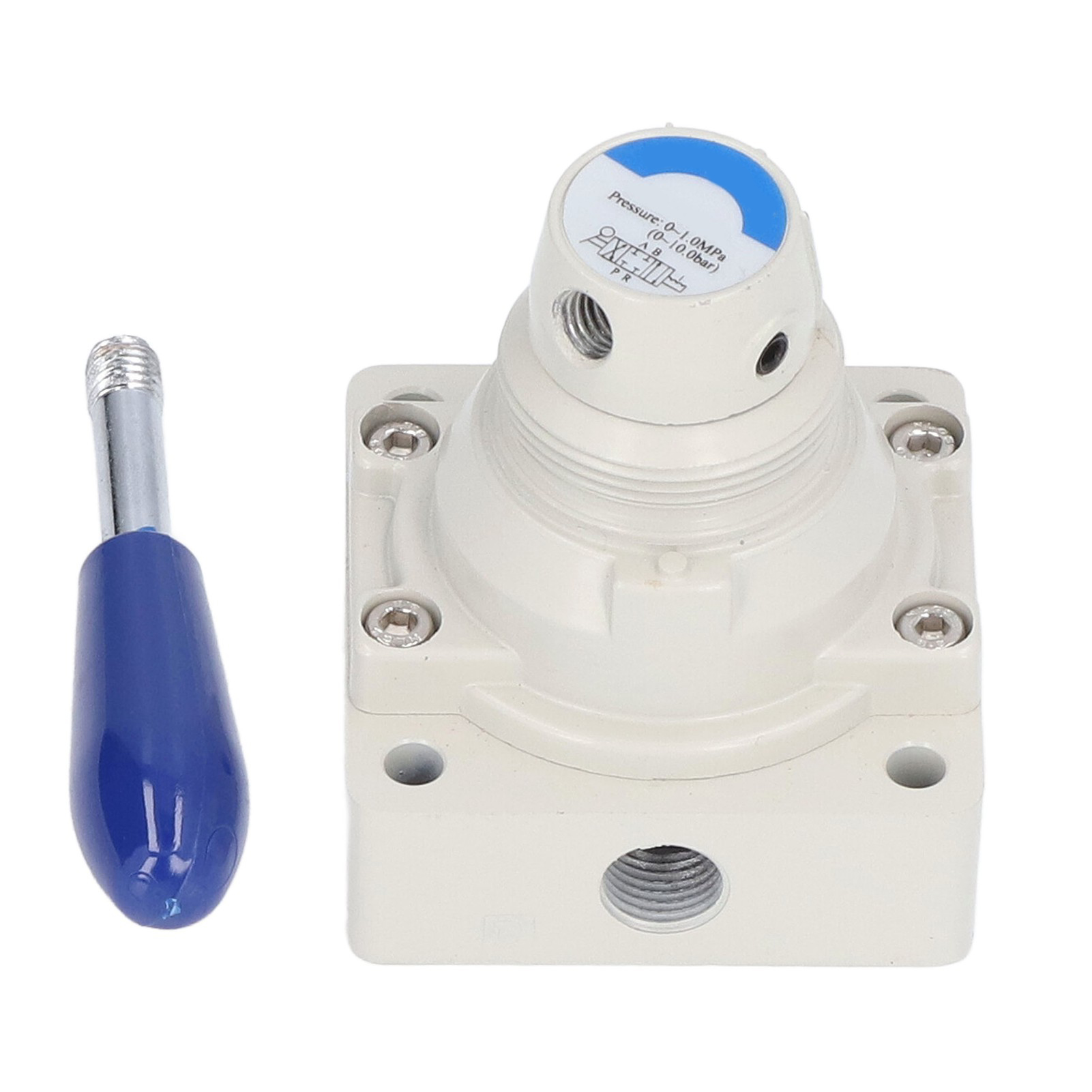

Product Image:
Rotary,Lever,Hand,Valve§Rotary,Lever,Hand,Control,Valve§Pneumatic,Rotary,Valve§Pneumatic,Rotary,Hand,Valve§Pneumatic,Switch§Pneumatic,Equipment
Note:
Keep the pipeline clean and prolong the service life.
Package List:
1 x Rotary Lever Hand Valve1 x Handle(Color Random)
Features:
1ã€LIGHT REVERSING ROTATION: Rotary lever hand valve possess light reversing rotation, good hand feeling, and accurate positioning 2ã€LARGE EFFECTIVE CIRCULATION AREA: Come with large effective circulation area and small pressure loss, very reliable and practical 3ã€HIGH MATCHING DEGREE: High accuracy valve stem has high matching degree and good air tightness, you can use with confidence 4ã€LOW FRICTION RESISTANCE: The inner hole is treated with a special process, with low friction resistance and long service life, more durable 5ã€ALUMINUM ALLOY MATERIAL: Rotary lever hand valve using aluminum alloy material, come with stable performance and durable
Specification:
Item Type: Rotary Lever Hand ValveMaterial: Aluminum alloyModel4HV210-064HV210-08Way of workingAirConnecting pipe caliberG1/8G1/4Effective cross sectional area14mm²(Cv=0.78)16mm²(Cv=0.89)Number of digits2 Position 4 wayLubricatingNo lubrication requiredOperating pressure range0-1.0MPa (0-145psi)Ensure pressure resistance1.5MPa (215psi)Operating temperature-20~70℃Working angle90°
Product Image:
